TR Incremental Servo Motor Encoder CE65M 110 01460 DIN Standard Plug

TR Electronic Rotary Encoder CE65M 110-01460 New Condition

Encoder Series

• Absolute encoder (CE-65 ZE-65, ZE, ZL, CE, MG, ZH, CH series)
• Incremental Encoders ((IE-35, 40, 58, IH-20, 58, IH-76-0500, 76-0503, IH-120 series);
• High-precision linear measurement series (LT-PI, LT-S);
• Linear absolute TR displacement sensor (LP-38, LA-79, LA-41-K, LA-42, LA-66K, LP-65, LA-66, LA-80)
• With cable box encoder series (SLG series)
• Laser range finder (LE100, LE200 series)
• Absolute value linear encoder (LA-41-K, absolute encoder)
• Absolute value programmable encoder (CE-65-M / S, CE-100-M / S, ZE-115 / 65- LA-66-K series)

Encoder Feature

TR incremental encoder (IE35, 40, 58, 80 series), among which the TR absolute value accuracy can reach more than 33 bits. The encoder's matching interface :SSI, ISI, ASI, PROFIBUS,DP, CAN-BUS, SLIN, INTERBUS-S, Parallel, Analog, Cam and other interfaces etc.

LWH, TLH, TRS, TR, TS, F205.1G Measuring distance from 75mm to 4000mm, with rod type LWH series and slider type TLH series two kinds.It is with front bearing and DIN standard plug, and its measurement accuracy is better than 0.01mm. The maximum working speed is 10m /s, life of 100x106, widely used in injection molding, machine tools, ships and other industries

Rotary encoder

Power loss (no load) ---- <4 watts

Operating temperature range ---- -20 ° C --- +70 ° C

Degree of protection (DIN40 050) - Up to IP65, depending on the configuration

Options ---- 3-12Mbaud

More items in Stock

absolute rotary encoder

cnc spindle encoder

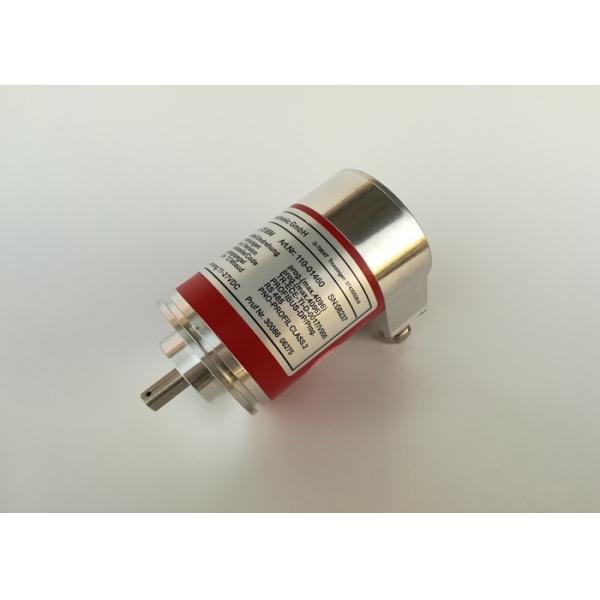

TR Incremental Servo Motor Encoder CE65M 110 01460 DIN Standard Plug Images
